: 3741800

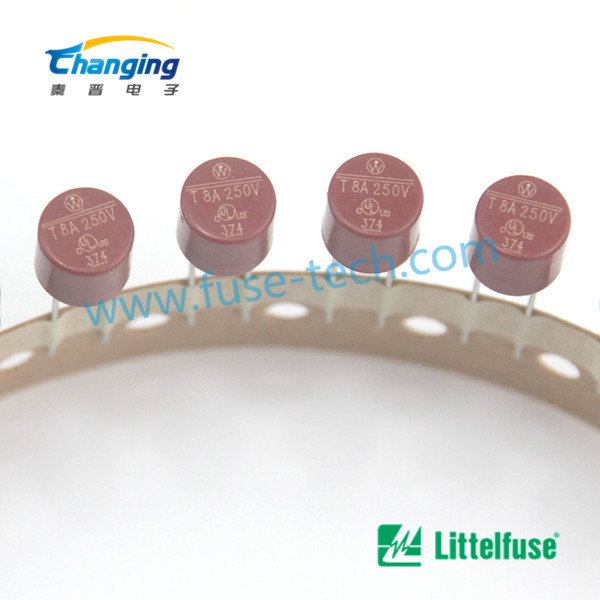

力特3741800 無鹵素、無鉛且符合RoHS標準降低對PCB板的空間要求可直接軟焊或插入獲國際認證低內阻防電擊外殼抗振額定電流從0.050A至10A

應用領域:電池充電器消費電子產品電源工業控制器

型號	AmpCode	Rated Current	Voltage Rating	Bearking Capacity	VoltageDrop 1.0×1N max.(mV)	PowerDissipation 1.5×1Nmax.(mW)	MeitingIntegral 10×1Nmin.（A2s)
3742100	2100	10.00A	250V	50 A / 250 VAC	90	1250	280
3741800	1800	8.00A	250V	50 A / 250 VAC	80	1000	150
3741630	1630	6.30A	250V	50 A / 250 VAC	90	570	110
3741500	1500	5.00A	250V	50 A / 250 VAC	95	475	59
3741400	1400	4.00A	250V	50 A / 250 VAC	100	400	36
3741315	1315	3.15A	250V	50 A / 250 VAC	110	350	22
3741250	1250	2.50A	250V	50 A / 250 VAC	120	300	14
3741200	1200	2.00A	250V	50 A / 250 VAC	125	250	7.5
3741160	1160	1.60A	250V	50 A / 250 VAC	130	210	4.5
3741125	1125	1.25A	250V	50 A / 250 VAC	145	185	3.2
3741100	1100	1.00A	250V	50 A / 250 VAC	155	155	2.1
3740800	0800	800mA	250V	50 A / 250 VAC	160	130	0.98
3740630	0630	630mA	250V	50 A / 250 VAC	210	135	0.75
3740500	0500	500mA	250V	50 A / 250 VAC	220	110	0.6
3740400	0400	400mA	250V	50 A / 250 VAC	250	100	0.32
3740315	0315	315mA	250V	50 A / 250 VAC	300	95	0.26
3740250	0250	250mA	250V	50 A / 250 VAC	350	90	0.17
3740200	0200	200mA	250V	50 A / 250 VAC	390	80	0.1
3740160	0160	160mA	250V	50 A / 250 VAC	480	80	0.058
3740125	0125	125mA	250V	50 A / 250 VAC	550	70	0.044
3740100	0100	100mA	250V	50 A / 250 VAC	600	60	0.025
3740080	0080	80mA	250V	50 A / 250 VAC	700	55	0.014
3740063	0063	63mA	250V	50 A / 250 VAC	800	50	0.009
3740050	0050	50mA	250V	50 A / 250 VAC	900	45	0.0056
