0466.500NRHF

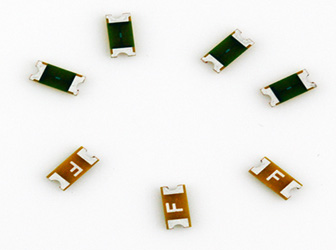

Littelfuse力特0466.500NRHF Nano2 SMF保險絲是一款超小型、方形表面貼裝的保險絲，也可連同表面貼裝保險絲座供貨。 功能與特色: 特快熔斷、尺寸小巧 產品額定電流范圍廣（62mA至15A） 工作溫度范圍廣泛、低溫降額、符合RoHS標準、無鹵素
| 型號 |
Ampere Rating (A) |
Amp Code |
Max Voltage Rating(V) |
Interrupting Rating |
Nominal Code Resistance (Ohms) |
Nominal Melting I2t(A2sec) |
NomVoltage Drop(mV) |
NomPower Dissipation (W) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|
| 046601.75NRHF | 1.75 | 1.75 | 63 | 50A @63V AC/DC | 0.039 | 0.1323 | 80.73 | 0.1413 |
 |
| 0466.375NRHF | 0.375 | .375 | 125 | 50A @125V AC/DC | 0.350 | 0.0028 | 169.18 | 0.0634 |
|
| 046601.25NRHF | 1.25 | 1.25 | 63 | 50A @63V AC/DC | 0.059 | 0.0640 | 85.71 | 0.1071 |
|
| 0466005.NRHF | 5.00 | 005. | 32 | 50A @32V AC/DC | 0.011 | 1.600 | 73.75 | 0.3688 |
|
| 0466004.NRHF | 4.00 | 004. | 32 | 50A @32V AC/DC | 0.014 | 1.024 | 74.50 | 0.2980 |
|
| 0466003.NRHF | 3.00 | 003. | 32 | 50A @32V AC/DC | 0.020 | 0.5760 | 75.99 | 0.2280 |
|
| 046602.5NRHF | 2.50 | 02.5 | 32 | 50A @32V AC/DC | 0.024 | 0.3516 | 76.99 | 0.1925 |
|
| 0466002.NRHF | 2.00 | 002. | 63 | 50A @63V AC/DC | 0.031 | 0.2326 | 78.73 | 0.1575 |
|
| 046601.5NRHF | 1.50 | 01.5 | 63 | 50A @63V AC/DC | 0.048 | 0.1103 | 82.97 | 0.1244 |
|
| 0466001.NRHF | 1.00 | 001. | 63 | 50A @63V AC/DC | 0.076 | 0.0423 | 89.94 | 0.0899 |
|
| 0466.750NRHF | 0.750 | .750 | 63 | 50A @63V AC/DC | 0.111 | 0.0276 | 98.65 | 0.0740 |
|
| 0466.500NRHF | 0.500 | .500 | 63 | 50A @63V AC/DC | 0.248 | 0.0060 | 158.47 | 0.0792 |
|
| 0466.250NRHF | 0.250 | .250 | 125 | 50A @125V AC/DC | 0.710 | 0.0010 | 207.01 | 0.0518 |
|
| 0466.125NRHF | 0.125 | 0.125 | 125 | 50A@125VAC/DC | 4.000 | 0.00040 | 552.66 | 0.0691 |
|
| 0466.200NRHF | 0.200 | .200 | 125 | 50A@125VAC/DC | 1.160 | 0.00055 | 254.28 | 0.0509 |
|
